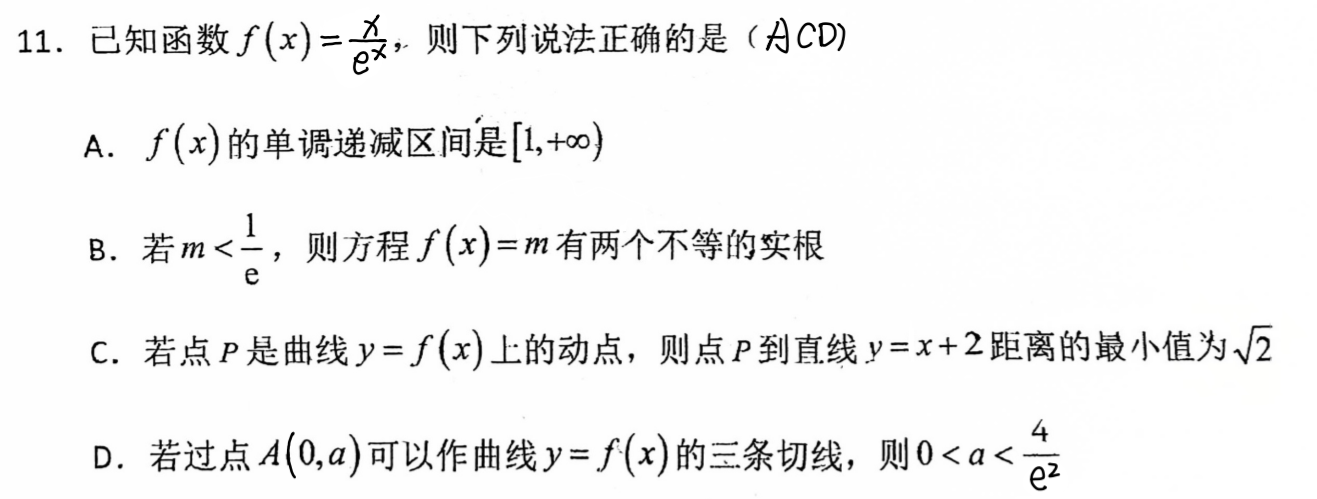

先放题目

HAMMERATH表现

from manim import *
import numpy as np

class FunctionAnalysis(Scene):
    def __init__(self, *args, **kwargs):
        super().__init__(*args, **kwargs)
        Tex.set_default(tex_template=TexTemplateLibrary.ctex)

    def construct(self):
        # 创建左右分区（隐形边框）
        left_region = Rectangle(width=7.5, height=7.0).to_edge(LEFT, buff=0.2)
        right_region = Rectangle(width=5.5, height=7.0).to_edge(RIGHT, buff=0.2)

        # 题目展示
        title = Tex(r"\text{已知函数 } f(x) = \frac{x}{e^x}", font_size=36).move_to(left_region.get_top() + DOWN * 0.5)
        question = Tex(r"\text{则下列说法正确的是 (ACD)}", font_size=32).next_to(title, DOWN, buff=0.3)

        self.play(Write(title))
        self.play(Write(question))
        self.wait(1)

        # ==================== 选项A分析 ====================
        option_a = Tex(r"\text{A. } f(x) \text{ 的单调递减区间是 } [1, +\infty)", font_size=32).next_to(question, DOWN, buff=0.4)
        self.play(Write(option_a))
        self.wait(0.5)

        # 右侧绘制函数图像
        axes_a = Axes(
            x_range=[-1.0, 5.0, 1.0],
            y_range=[-0.2, 0.5, 0.1],
            x_length=4.5,
            y_length=3.5,
            axis_config={"include_tip": True, "font_size": 24}
        ).move_to(right_region.get_center() + UP * 1.0)

        # 函数 f(x) = x/e^x
        def func(x):
            return x / np.exp(x)

        graph_a = axes_a.plot(func, x_range=[-0.5, 5.0], color=BLUE)

        self.play(Create(axes_a))
        self.play(Create(graph_a))
        self.wait(0.5)

        # 标记单调递减区间 [1, +∞)
        critical_point = Dot(axes_a.c2p(1.0, func(1.0)), color=RED)
        decreasing_line = axes_a.plot(func, x_range=[1.0, 5.0], color=RED, stroke_width=6)

        self.play(Create(critical_point))
        self.play(Create(decreasing_line))
        self.wait(0.5)

        result_a = Tex(r"\text{A 正确}", font_size=32, color=GREEN).next_to(option_a, DOWN, buff=0.3)
        self.play(Write(result_a))
        self.wait(1)

        # ==================== 选项B分析 ====================
        option_b = Tex(r"\text{B. 若 } m < \frac{1}{e}\text{，则方程 } f(x) = m \text{ 有两个不等实根}", font_size=28)
        option_b.move_to(left_region.get_center() + UP * 1.5)

        self.play(
            FadeOut(title),
            FadeOut(question),
            FadeOut(option_a),
            FadeOut(result_a),
            Write(option_b)
        )
        self.wait(0.5)

        # 清除右侧内容
        self.play(
            FadeOut(axes_a),
            FadeOut(graph_a),
            FadeOut(critical_point),
            FadeOut(decreasing_line)
        )

        # 重新绘制坐标系
        axes_b = Axes(
            x_range=[-1.0, 6.0, 1.0],
            y_range=[-0.1, 0.5, 0.1],
            x_length=4.5,
            y_length=3.5,
            axis_config={"include_tip": True, "font_size": 24}
        ).move_to(right_region.get_center() + UP * 0.5)

        graph_b = axes_b.plot(func, x_range=[-0.5, 6.0], color=BLUE)

        self.play(Create(axes_b))
        self.play(Create(graph_b))
        self.wait(0.5)

        # f(x)的最大值在x=1处，f(1) = 1/e ≈ 0.368
        max_val = 1.0 / np.e

        # 绘制 0 < m < 1/e 的区域（用条纹表示）
        stripe_lines = []
        for m_val in np.linspace(0.05, max_val - 0.02, 8):
            h_line = axes_b.plot(lambda x, mv=m_val: mv, x_range=[-0.5, 6.0], color=GREEN, stroke_width=1)
            h_line.set_opacity(0.5)
            stripe_lines.append(h_line)

        stripe_group = VGroup(*stripe_lines)
        self.play(LaggedStart(*[Create(line) for line in stripe_lines], lag_ratio=0.1))
        self.wait(0.5)

        # 但是当 m=0 时只有一个根（x=0），所以B错误
        analysis_b = Tex(r"\text{当 } m = 0 \text{ 时只有一个根}", font_size=28).next_to(option_b, DOWN, buff=0.3)
        result_b = Tex(r"\text{B 错误}", font_size=32, color=RED).next_to(analysis_b, DOWN, buff=0.2)

        self.play(Write(analysis_b))
        self.play(Write(result_b))
        self.wait(1)

        # ==================== 选项C分析 ====================
        option_c = Tex(r"\text{C. 点 P 到直线 } y = x + 2 \text{ 距离最小值为 } \sqrt{2}", font_size=28)
        option_c.move_to(left_region.get_center() + UP * 2.0)

        self.play(
            FadeOut(option_b),
            FadeOut(analysis_b),
            FadeOut(result_b),
            Write(option_c)
        )
        self.wait(0.5)

        # 清除右侧
        self.play(
            FadeOut(axes_b),
            FadeOut(graph_b),
            FadeOut(stripe_group)
        )

        # 重新绘制
        axes_c = Axes(
            x_range=[-1.0, 5.0, 1.0],
            y_range=[-1.0, 3.0, 1.0],
            x_length=4.5,
            y_length=4.0,
            axis_config={"include_tip": True, "font_size": 24}
        ).move_to(right_region.get_center())

        graph_c = axes_c.plot(func, x_range=[-0.5, 5.0], color=BLUE)

        self.play(Create(axes_c))
        self.play(Create(graph_c))
        self.wait(0.5)

        # 绘制直线 y = x + 2
        target_line = axes_c.plot(lambda x: x + 2.0, x_range=[-1.0, 2.0], color=GREEN, stroke_width=3)
        self.play(Create(target_line))
        self.wait(0.5)

        x_tangent = 0.0
        y_tangent = func(x_tangent)
        tangent_point = Dot(axes_c.c2p(x_tangent, y_tangent), color=RED)

        # 切线方程：y = x
        tangent_line = axes_c.plot(lambda x: x, x_range=[-0.5, 2.0], color=RED, stroke_width=4)

        self.play(Create(tangent_point))
        self.play(Create(tangent_line))
        self.wait(0.5)

        calc_c1 = Tex(r"\text{切线斜率为 1 时：} f'(x) = 1", font_size=28).next_to(option_c, DOWN, buff=0.3)
        calc_c2 = Tex(r"\text{切线：} y = x", font_size=28).next_to(calc_c1, DOWN, buff=0.2)
        calc_c3 = Tex(r"d = \frac{|2|}{\sqrt{2}} = \sqrt{2}", font_size=28).next_to(calc_c2, DOWN, buff=0.2)
        result_c = Tex(r"\text{C 正确}", font_size=32, color=GREEN).next_to(calc_c3, DOWN, buff=0.2)

        self.play(Write(calc_c1))
        self.play(Write(calc_c2))
        self.play(Write(calc_c3))
        self.play(Write(result_c))
        self.wait(1)

        # ==================== 选项D分析 ====================
        option_d = Tex(r"\text{D. 过点 } A(0, a) \text{ 可作三条切线，则 } 0 < a < \frac{4}{e^2}", font_size=26)
        option_d.move_to(left_region.get_center() + UP * 2.5)

        self.play(
            FadeOut(option_c),
            FadeOut(calc_c1),
            FadeOut(calc_c2),
            FadeOut(calc_c3),
            FadeOut(result_c),
            Write(option_d)
        )
        self.wait(0.5)

        # 清除右侧
        self.play(
            FadeOut(axes_c),
            FadeOut(graph_c),
            FadeOut(target_line),
            FadeOut(tangent_point),
            FadeOut(tangent_line)
        )

        # 重新绘制
        axes_d = Axes(
            x_range=[-1.0, 6.0, 1.0],
            y_range=[-0.2, 0.5, 0.1],
            x_length=4.5,
            y_length=3.5,
            axis_config={"include_tip": True, "font_size": 24}
        ).move_to(right_region.get_center() + UP * 0.8)

        graph_d = axes_d.plot(func, x_range=[-0.5, 6.0], color=BLUE)

        self.play(Create(axes_d))
        self.play(Create(graph_d))
        self.wait(0.5)

        inflection_x = 2.0
        inflection_y = func(inflection_x)
        inflection_point = Dot(axes_d.c2p(inflection_x, inflection_y), color=RED, radius=0.08)

        self.play(Create(inflection_point))
        self.wait(0.5)

        slope_at_inflection = -1.0 / (np.e ** 2)
        y_intercept = inflection_y - inflection_x * slope_at_inflection
        intercept_point = Dot(axes_d.c2p(0.0, y_intercept), color=GREEN, radius=0.08)

        tangent_at_inflection = axes_d.plot(
            lambda x: slope_at_inflection * x + y_intercept,
            x_range=[-0.5, 5.0],
            color=RED,
            stroke_width=3
        )

        self.play(Create(tangent_at_inflection))
        self.play(Create(intercept_point))
        self.wait(0.5)

        calc_d1 = Tex(r"f''(x) = \frac{x - 2}{e^x}", font_size=28).next_to(option_d, DOWN, buff=0.3)
        calc_d2 = Tex(r"\text{拐点：} x = 2", font_size=28).next_to(calc_d1, DOWN, buff=0.2)
        calc_d3 = Tex(r"\text{切线与 y 轴交点：} y = \frac{4}{e^2}", font_size=28).next_to(calc_d2, DOWN, buff=0.2)
        result_d = Tex(r"\text{D 正确}", font_size=32, color=GREEN).next_to(calc_d3, DOWN, buff=0.2)

        self.play(Write(calc_d1))
        self.play(Write(calc_d2))
        self.play(Write(calc_d3))
        self.play(Write(result_d))
        self.wait(2)

        # 最终结论
        final_answer = Tex(r"\text{答案：ACD}", font_size=40, color=GREEN).move_to(left_region.get_center())

        self.play(
            FadeOut(option_d),
            FadeOut(calc_d1),
            FadeOut(calc_d2),
            FadeOut(calc_d3),
            FadeOut(result_d),
            Write(final_answer)
        )
        self.wait(2)
